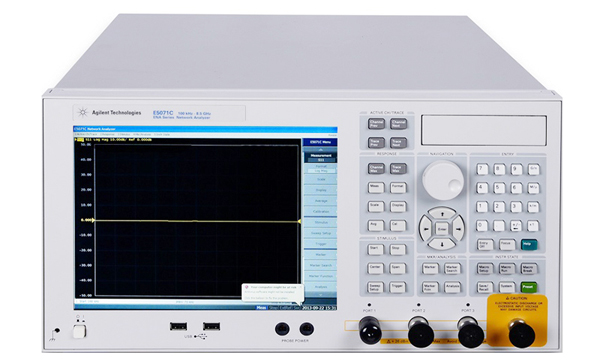

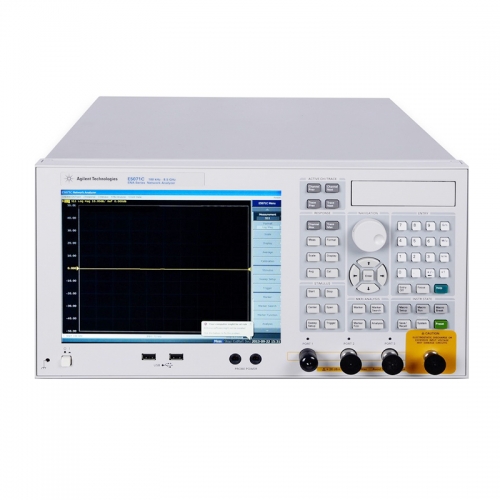

Sell Agilent E5071C and recycle Agilent E5071C
Main features and functions
9 kHz to 4.5/6.5/8.5/14/20 GHz
2 or 4 ports, 50 Ω, S-parameter tester
Provides a wide dynamic range of 130 dB, a fast measurement speed of 8 ms, and a temperature stability of 0.005 dB/℃, which can improve measurement accuracy, increase product yield, and increase design margin
The enhanced time-domain analysis option can fully characterize high-speed serial interconnects, enhancing your confidence in your design
All options can be upgraded to protect your investment
Technical index:
Maximum frequency 20 GHz
Dynamic range 123 dB
Output power 10 dBm
Track noise 0.003 dBrms
Number of built-in ports 2 or 4 ports
Harmonic -25 dBc
Noise floor -131 dBm
Scan speed up to 201 points 5 ms
Application
S parameter
Multiport
Balance measurement
Components
cable
Mixer/Inverter
Amplifier
Resonator
Desktop Yes
Main features and technical indicators
E5071C wide dynamic range:> 123 dB dynamic range at the test port (typical value)
E5071C extremely fast measurement speed: 41 ms during full two-port calibration, 1601 points
E5071C Low trace noise: 0.004 dB rms at 70 kHz intermediate frequency bandwidth (IFBW)
E5071C integrated S-parameter test device
E5071C port options: 2-port and 4-port
E5071C balance measurement capability (4-port option)
E5071C frequency options: 9 kHz to 4.5 GHz/8.5 GHz, 100 kHz to 4.5 GHz/8.5 GHz (with offset T connector), 300 kHz to 20 GHz (with offset T connector)
E5071C built-in Visual Basic application programming language (VBA)
Describe
The E5071C network analyzer has the highest RF performance and fastest speed among similar products, and has a wide frequency range and comprehensive functions. E5071C is an ideal solution for manufacturing and R&D engineers to test RF components and circuits within 20 GHz.
New feature: The new 20 GHz option can extend the frequency range of the E5071C ENA series network analyzer to 20 GHz. The new 20 GHz option supports dual-port (option 2K5) and four-port (option 4K5) configurations, which can be used to measure various components, such as WLAN, WiMAX?, UWB, or the first of any passive components in 4G technology. Three harmonics
E5071C network analyzer optional models
E5071C—240 two-port tester 9KHz-4.5GHz without offset T connector
E5071C—245 dual port tester 100KHz-4.5GHz with offset T-connector
E5071C—440 4-port tester 9KHz-4.5GHz without offset T-connector
E5071C—445 4-port tester 100KHz-4.5GHz with offset T connector
E5071C—280 dual port tester 9KHz-8.5GHz without offset T-connector
E5071C—285 dual port tester 100KHz-8.5GHz with offset T connector
E5071C—480 4-port tester 9KHz-8.5GHz without offset T connector
E5071C—485 4-port tester 100KHz-8.5GHz with offset T connector
E5071C—008 Frequency offset mode
E5071C—010 Time domain analysis capability
E5071C—790 Measurement Wizard Assistant Software
E5071C—1E5 High stability time base
